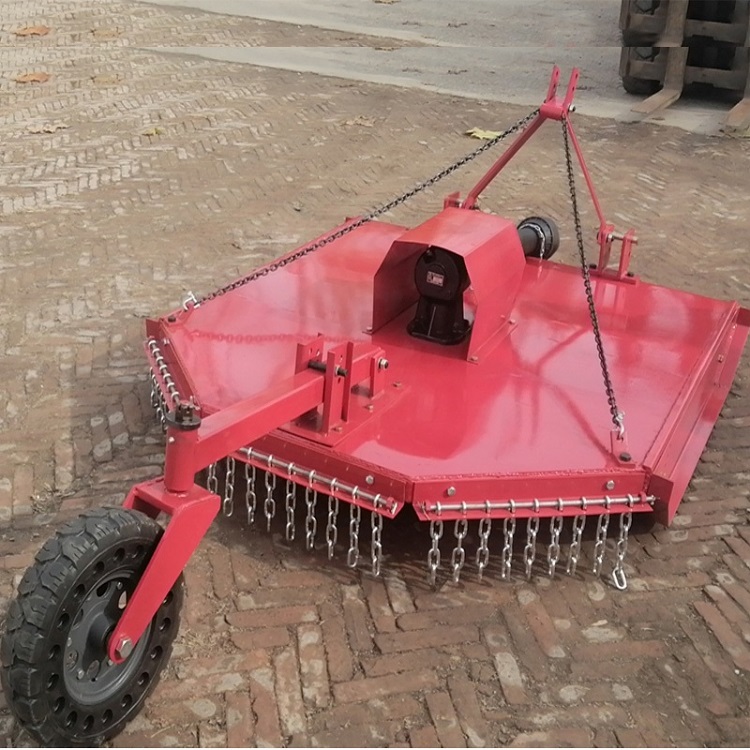

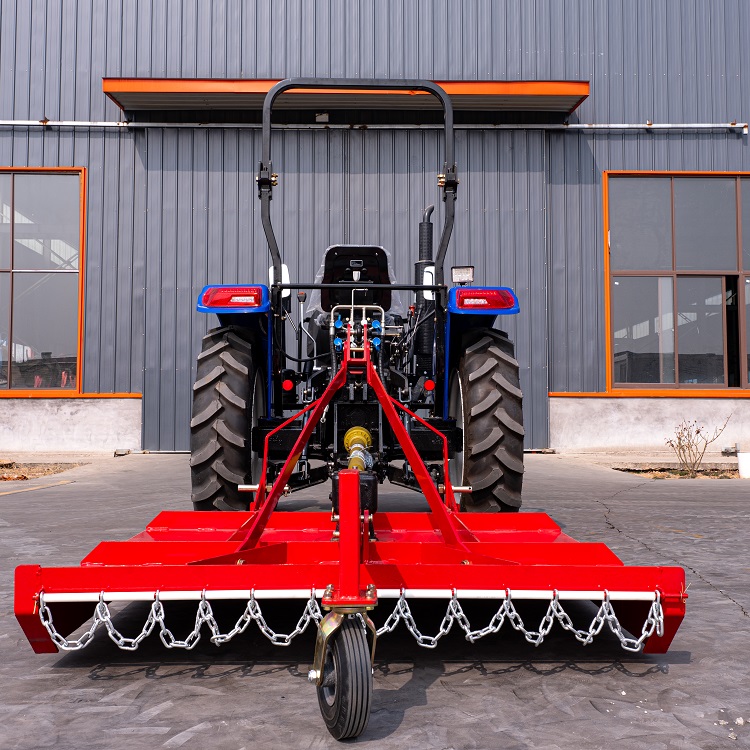

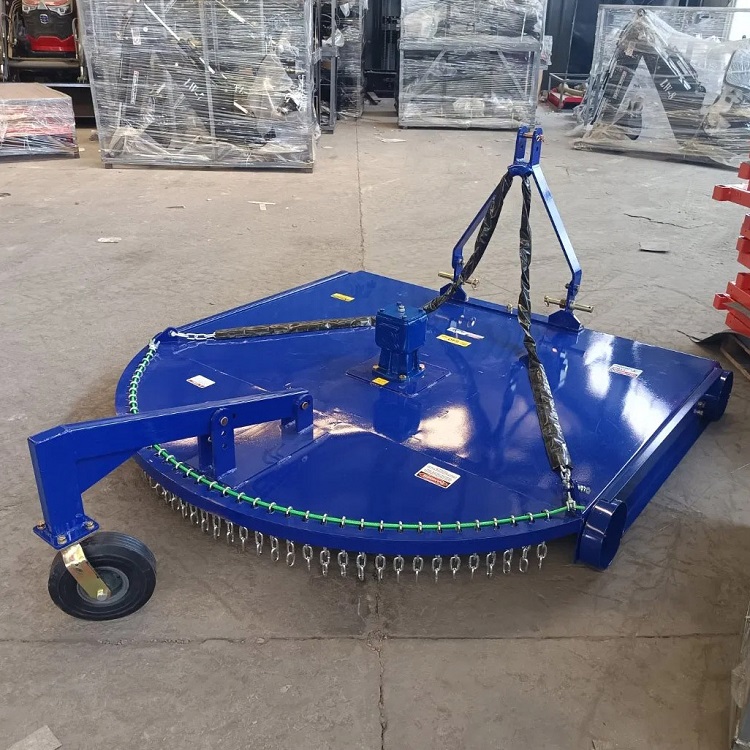

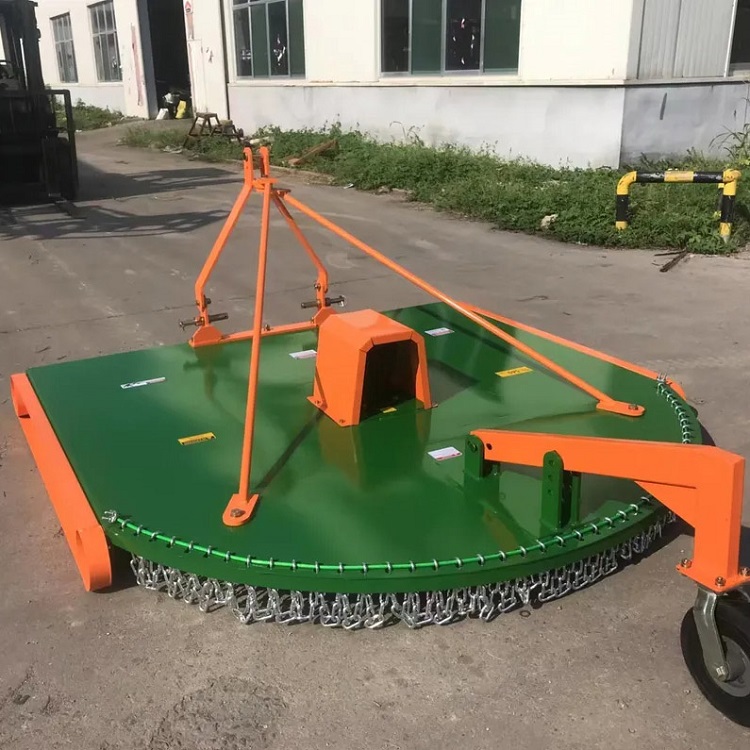

REX Mower
Crank link mechanism to drive the cutter blade to mow grass Suitable for cutting natural and planted grass in ranch, mountain and hilly areas Compact designed and operated easily
Product Details
| MODEL | REX120 | REX140 | REX160 | REX180 | REX240 |
| DIMENSIONS (L x W x H) | 1300x1300x900mm | 1400x1400x900mm | 1600x1600x900mm | 1800x1800x900mm | 2000x2000x900mm |
| STRUCTURE WEIGHT | 210kg | 230kg | 270kg | 290kg | 330kg |
| CUTTING WIDTH | 124cm | 134cm | 154cm | 174cm | 195cm |
| WORKING EFFICIENCY | 4000~10000m2/h | 4000~10000m2/h | 4500~10000m2/h | 4500~11000m2/h | 5000~15000m2/h |
| INPUT TURNNING SPEED | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| PTO SPLINE | 6x6x850 | 6x6x850 | 6x6x850 | 6x6x850 | 6x6x850 |
